Crossbeam: It adopts square tube butt-welding structure, featuring good rigidity, high precision, light weight and small inertia. All welded parts are vibration aging stress relief treatment, effectively preventing structural deformation.
Longitudinal and transverse drive: both adopt precision rack and pinion (grade 7 precision) drive. Transverse guide rail adopts Taiwan imported linear guide rail, longitudinal guide rail is made of precision machined special steel rail, to ensure that the cutting machine running smoothly, high precision, and durable, clean and beautiful; deceleration using planetary gear reducer, can be very perfect to ensure that the movement of the accuracy and balance of the degree of; 3. longitudinal drive frame (longitudinal drive frame): both adopt precision rack and pinion (grade 7 precision) drive.
Longitudinal drive frame (end frame): two ends are equipped with horizontal guide wheels, which can adjust the degree of compression of the eccentric wheel on the guide rail at the bottom of the drive frame, so that the whole machine maintains stable guidance in the movement. Equipped with dust collector, scraping the debris accumulated on the surface of the guide rail at any time.
The driving system for domestic stepping drive, according to user needs can choose the world's top products - imported Japan Panasonic AC servo drive / domestic servo drive, so that the whole machine is more stable, speed speed range is wider, acceleration time is short.
Lifting body adopts aluminium alloy structure, lifting guide adopts linear guide, lifting lifting adopts ball screw lifting; 6. simple and easy to use automatic programming.
Simple and easy to use automatic programming system, so that the CNC programming is no longer complex, a breeze.

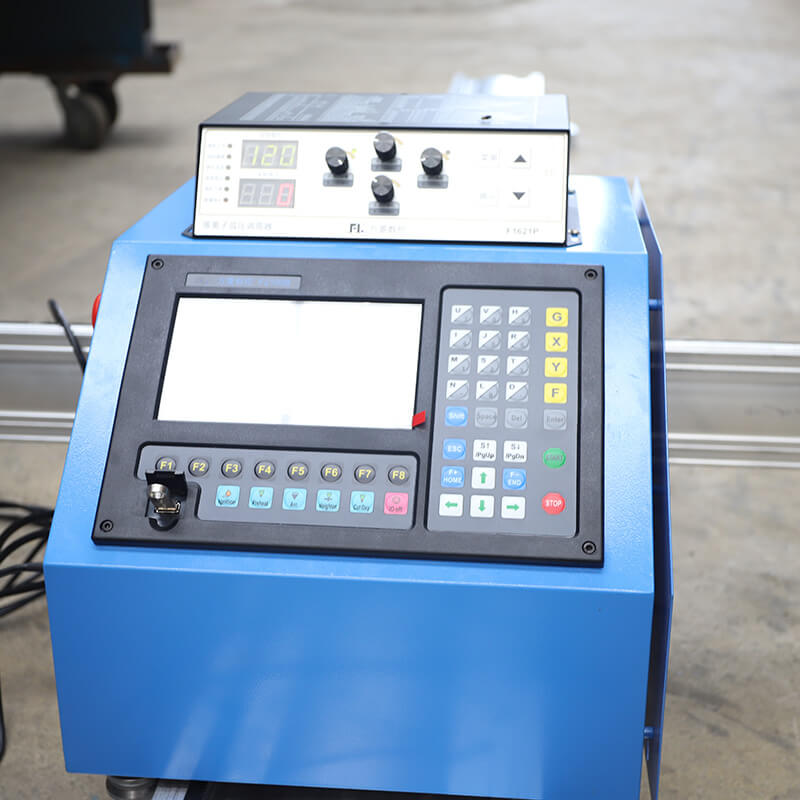

CNC control system adopts self-developed control system, with the most excellent domestic stability and strong anti-interference ability.
