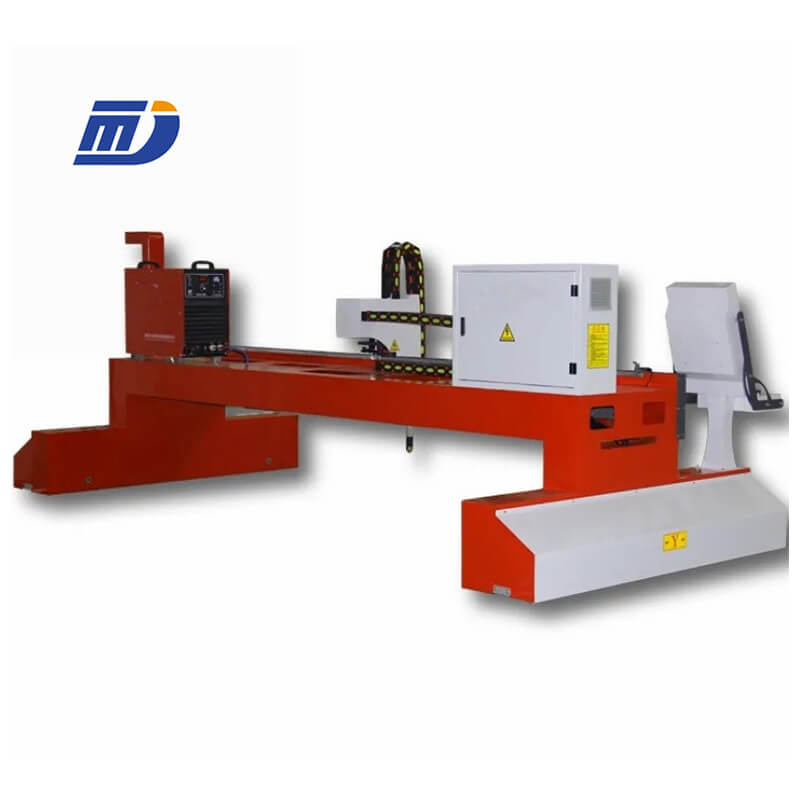

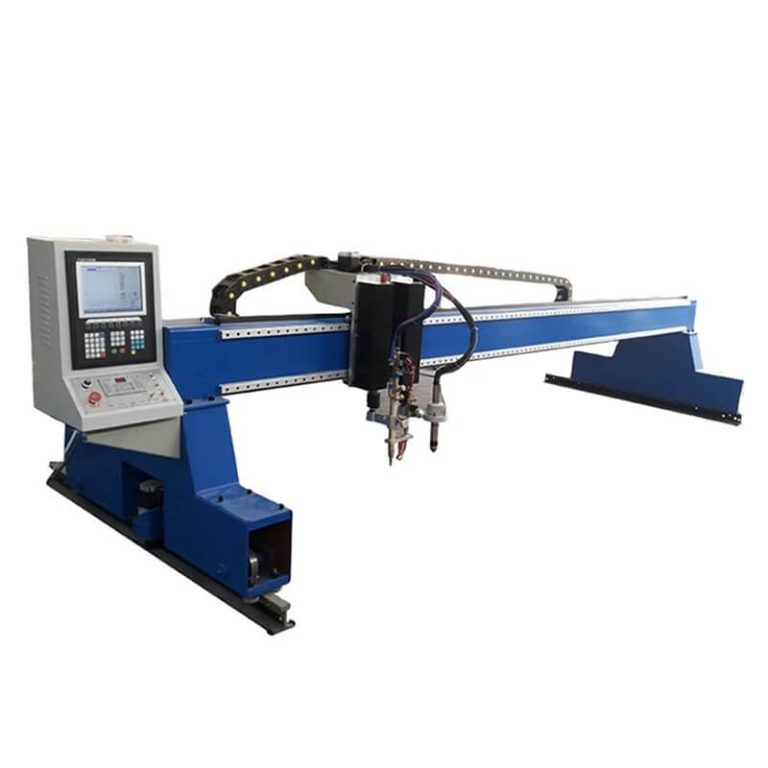

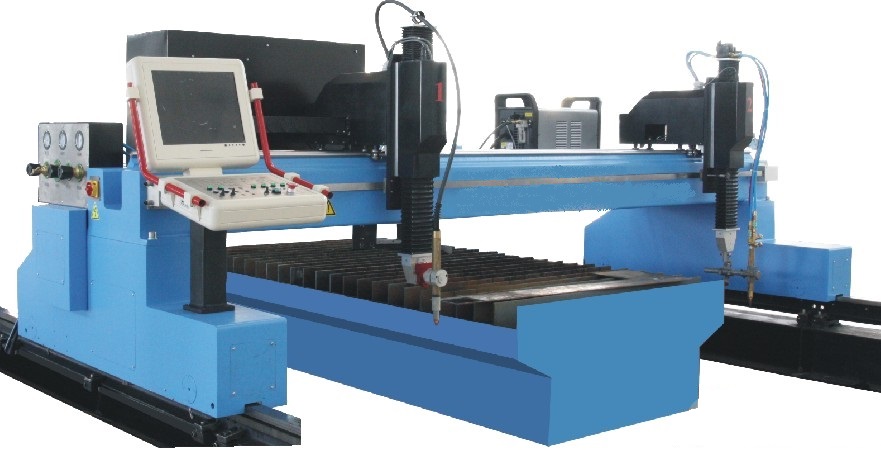

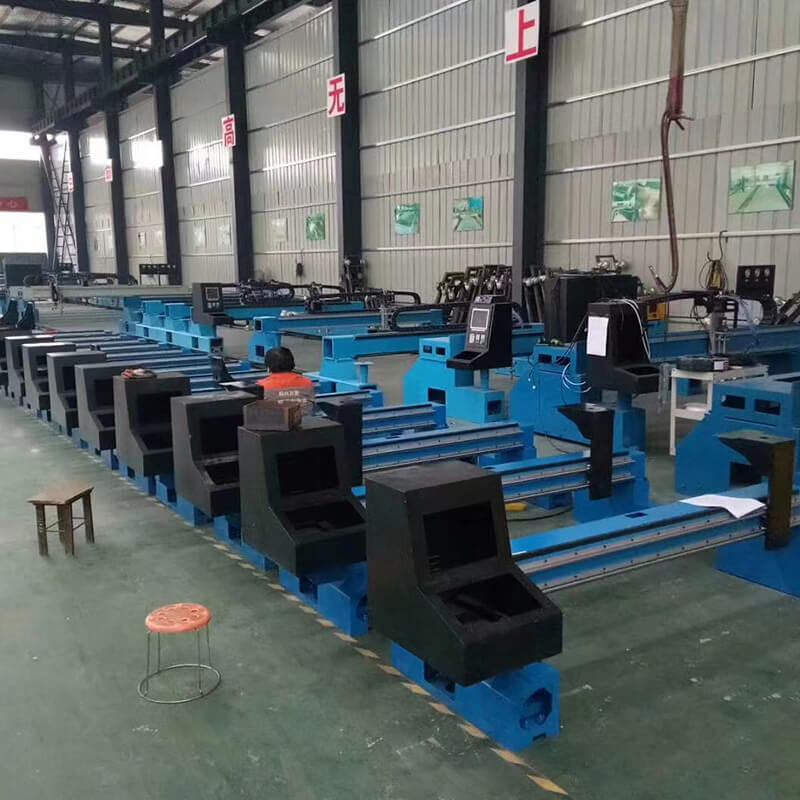

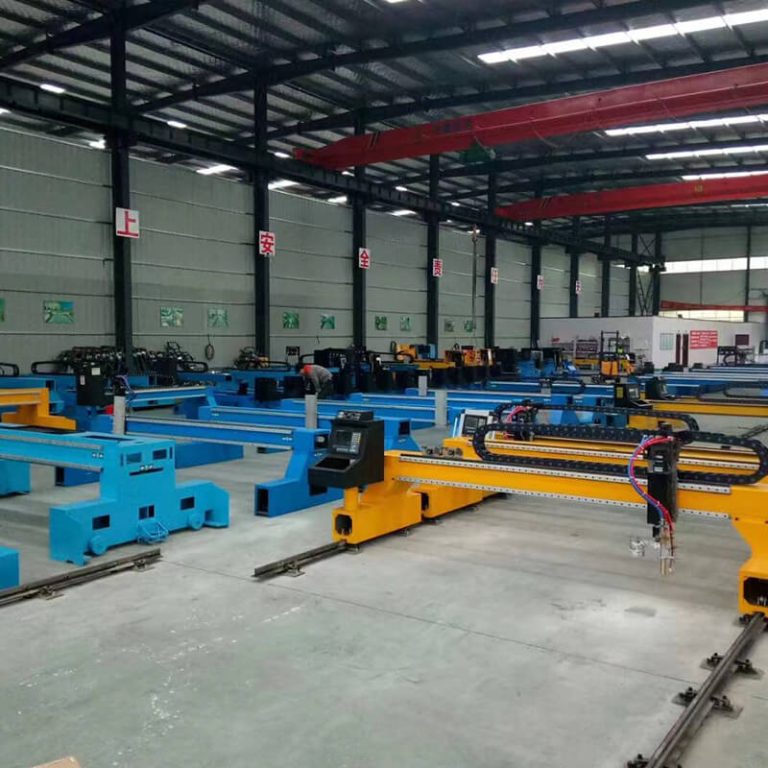

Gantry Plasma Cutting Machine

Description

Features

• Crossbeam: It adopts steel plate welding structure and is heat-treated to eliminate stress, featuring good steel, no deformation and high precision.

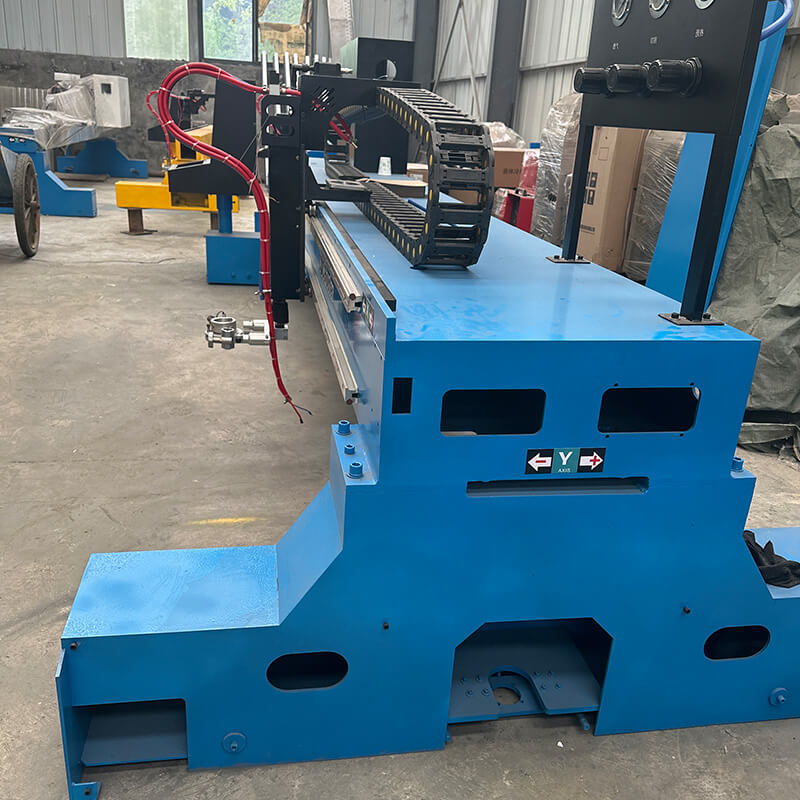

• Longitudinal drive frame (end frame): both ends are equipped with horizontal guide wheels, which can adjust the degree of compression of the eccentric wheels at the bottom of the drive frame on the guide rails, so that the whole machine maintains stable guidance in motion.
• Longitudinal and transverse drive: both adopt precision rack and pinion (grade 7 precision) transmission. Longitudinal guide rails are imported with linear guide rails, longitudinal guide rails are precision machined special steel rails; the equipment adopts bilateral drive, drive system selection of imported servo motors and drive technology, so that the whole machine runs more smoothly, speed speed speed range is wide, and the accelerating time is short; the transmission part of the transmission adopts precision planetary gear reducer, which ensures that the operation of the cutting machine is smooth, high precision, and durable.

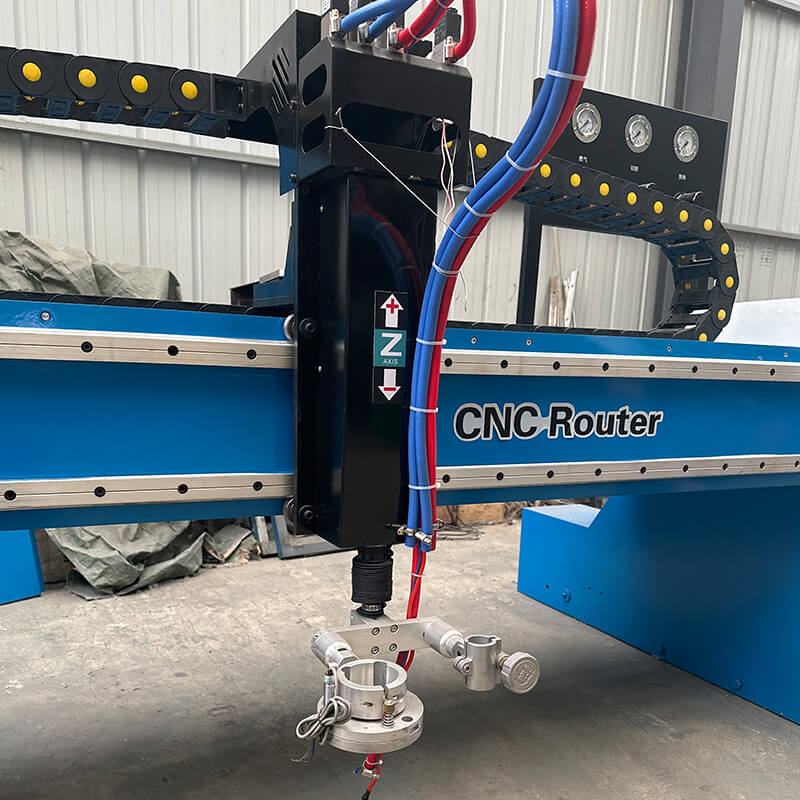

• The transmission adopts linear optical axis to drag the torch moving body to achieve isotropic cutting.
• DMJ CNC plasma cutting machine can be programmed to cut straight lines and arcs composed of any plane shape graphics. Dynamic and static graphic display, intuitive and easy to learn, can be directly programmed on the machine, but also on the computer CAD files can be directly converted into a program file, through the U disk to the machine to achieve cutting.
• Chinese and English operation interface can be freely converted.
• Support flame and plasma dual-use, affordable, lightweight and portable easy to operate.
• Strong work stability, effective shielding plasma high-frequency interference.
• CNC plasma cutting machine has the function of steel plate correction and retraction.

Parameter

Technical Specifications

1. Cutting shape: programmable to cut any plane shape steel plate parts consisting of straight line and circular arc.
2. Cutting accuracy: national standard JB/T10045.3-99.
3. Cutting width: 1m, 2m, 4m, 5m, 6m and other specifications can be selected.
4. Track length: track 2 metres a.
5. Driving mode: double-side drive; 6.
6. Torch configuration: standard 1 and 1 flame, optional increase in flame or plasma torch, but also according to user needs, customised; 7. cutting thickness: flame maximum of 1m, 4m, 5m, 6m and other specifications.
7. Cutting thickness: flame can cut up to 200mm, plasma cutting thickness depends on the size of the selected power supply.
8. Ignition height adjustment: automatic ignition, electric height adjustment, according to user requirements can be optional capacitive or arc pressure type automatic height adjustment.
9. Numerical control system: easy to use, stable performance.
10. CNC programming: AutoCAD-based automatic graphical programming software;
11. Cutting gas: oxygen + acetylene or propane.

Application Fields

This model is a kind of high-efficiency cutting equipment, suitable for various thickness of carbon steel, stainless steel and non-ferrous metal plate precision cutting material, improve the utilization rate of the plate, save time and material and labor.
