Description

    Features

    • Adopting truss beam and truss plate inserted into the truss beam type composite plate welding bed. Combined with a high-strength welding process, high-temperature annealing to remove stress, anti-deformation, and low vibration, it ensures extremely high cutting precision.
    • Based on the rigid-flexible coupling split truss molding of aviation aluminum beam, simulation with actual working conditions, while carrying multiple sources of load from the beam's acceleration and motor torque, reasonable layout design, high strength, high stability, to ensure long time high-speed cutting.
    • High-strength worktable, easy to dismantle and replace, no obstruction to production, high efficiency and time-saving, safe production.
    • Rich human-computer interaction interface, simple operation, easy to get started.

    Parameter

    Argument numberDMJ- D
     MJD - D6025DMJ - D8025DMJ - D10025DMJ - D12025
    Cutting range6000mmx2500mm8000mmx2500mm10000mmx2500mm12000mmx2500mm
    Mechanical positioning accuracy±0.03mm/m
    Mechanical repeated positioning accuracy±0.02mm
    Maximum linkage velocity120m/min
    Maximum acceleration1. 5G
    Z axis stroke120mm
    激光功率 Laser power3000W - 1 5000W
    laserIPG/TRUMPF/ RAYCUS/ FEIBO

    Benefits

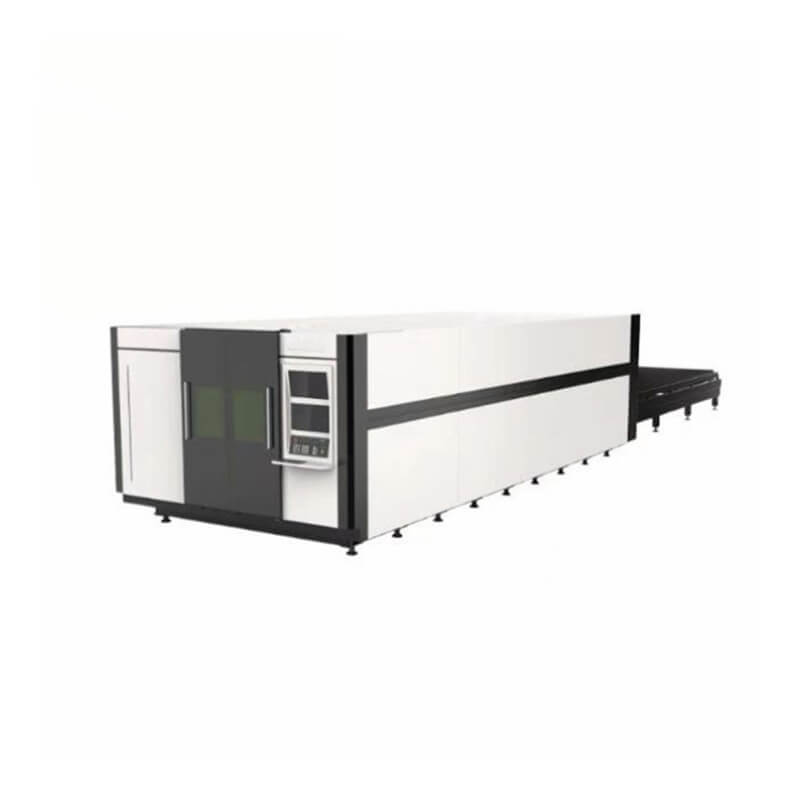

    All-round sheet metal shell cage

    Reduce cutting dust, dust flying, cutting process environmental protection without smoke and pollution.

    Dark-colored acrylic window

    You can clearly see the internal cutting situation, and can prevent the light source on the eyes caused by the damage.

    Laser cutting machine is a non-contact processing mode

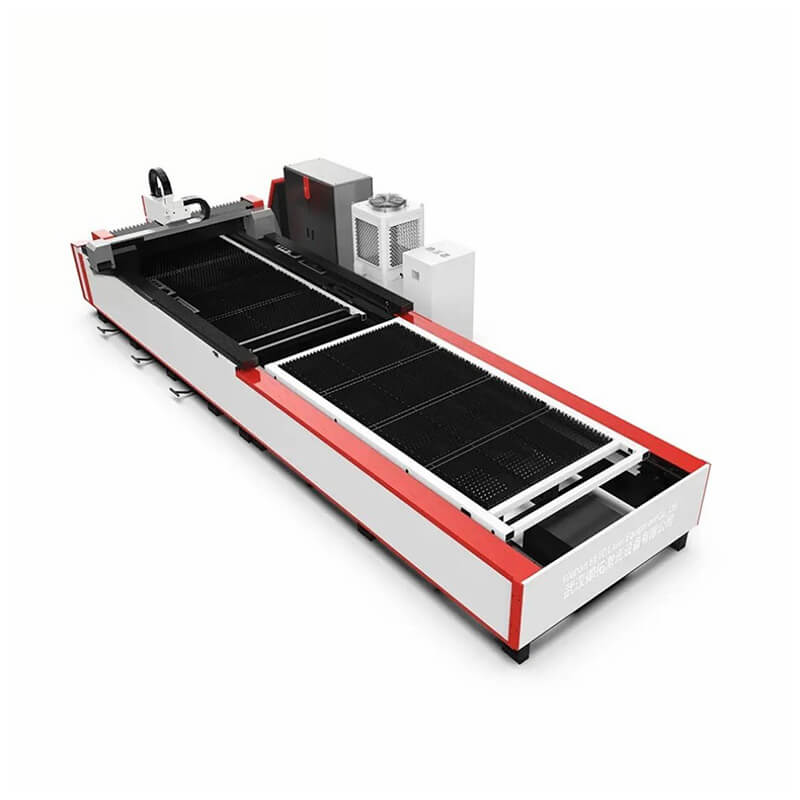

    There is no saw blade kind of direct contact cutting mode, the overall working environment is safer. Nothing is absolute, laser cutting machine work may also have a certain risk exists, more than one layer of protective cover is more security. Enclosed table, internal smoking dust more convenient, dust does not rise, processing more in line with environmental requirements. Enclosed laser cutting machine, equipped with a double work surface, the front surface cutting work and contains sheet metal enclosure surrounded by the backstage surface on the material feeding, cutting, convenient, loading and unloading time without delaying production.

    Laser cutting belongs to thermal cutting

    In the cutting process will produce a large number of sparks and smoke, laser cutting machine is generally equipped with dust extraction device, but still not inevitable part of the smoke and dust escape, these smoke and dust are mostly metal itself, inhalation of the human body has a certain degree of harm to the human body, after a long period of inhalation of human body has a great deal of damage. Full enclosure design, effectively blocking the fume out, the operator is safer, environmental protection has a good effect.

    Application Fields

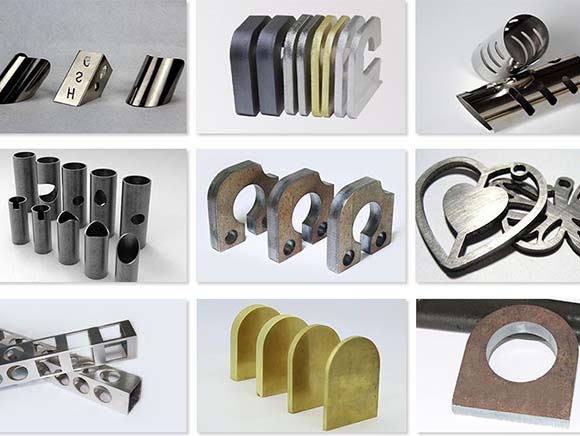

    Sheet metal processing, cutting round, bending, punching, various precision bearing accessories processing, industrial aluminum profile processing, cutting carbon steel, stainless steel, aluminum alloy, aluminum, copper, and other metal materials.
